Services request timeout is usually something that is less scrutinized over when designing a solution. Which is rightly so if we are considering a simple solutons (1-2 daisy chained microservices), and/or monolith ones. However that changes when we start looking at 5+ daisy chained microservices, as the diagram below illustrate it
 |
| Fig 1. All microservices have the same timeouts |
Now one could argue that we could obtain baseline of how long on average Microservice 5 will take to process the request and generate a response and configure each of the microservices accordingly, such as follow:
 |
| Fig 2. Each microservices slightly higher timeouts than downstream |
Which indeed would work well under a straight forward, theoritical happy case scenario. However most experienced SREs would agree that what matter is not the happy case scenario, but how the system handle all sort of stress loads.
Even if we can come up with the golden number for the baseline of Microservice 5, this approach of managing dependencies of timeouts get exponentially difficult as there are more and more microservices, for example how would one configure these microservice ecosystem:
 |
| Fig 3. Microservice Death Stars |
A better approach is to default all microservices to a
below customer abandonment timeouts (for example, 5s for front page, 30s for payment processing, etc) with the following mindset: "If the service for the front page is taking more than 5s, we will have to fix the performance instead of increasing the timeout because even if it doesn't time out, we will lose the customer"
 |
| Fig 4. All microservices have default timeouts, gateway |
But still, what do we do if there are critical transactions happening, let's say payment. When we are a transaction spanning across multiple microservice, we can use SAGA pattern and compesating actions to rollback all the changes:
 |

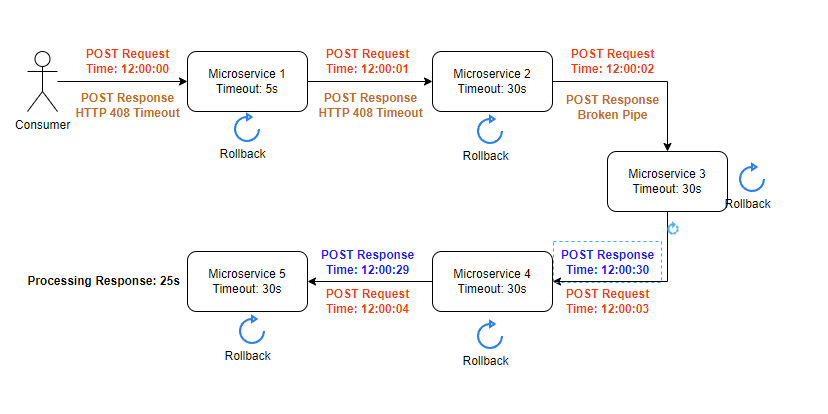

Fig 5. Rollback scenario where all microservices have default timeouts except front microservices that has 5 seconds timeout
|
